1. Introduction

Grade 10.9 Dacromet hexagon head bolts represent a premium class of high-strength fasteners widely used in automotive, construction, wind energy, heavy machinery, and infrastructure applications. These bolts combine three critical attributes: the superior mechanical performance of property class 10.9, the versatile and reliable geometry of the hexagonal head design, and the outstanding corrosion protection provided by Dacromet (zinc-flake) coating.

2. Property Class 10.9 — Mechanical Strength

Property class 10.9 is defined in ISO 898-1 (Mechanical properties of fasteners made of carbon steel and alloy steel — Part 1: Bolts, screws and studs). The designation “10.9” indicates a nominal tensile strength of 1000 MPa and a yield-to-tensile ratio of approximately 0.9. These fasteners are typically manufactured from quenched and tempered alloy steels (e.g., 35CrMo, 42CrMo, or boron steels) and are suitable for high-load structural and dynamic applications.

Key Mechanical Properties (ISO 898-1)

Property	Nominal	Minimum	Unit
Tensile strength Rm	1000	1040	MPa
Proof stress / Yield strength Rp0.2	900	940	MPa
Stress under proof load Sp	830	—	MPa
Elongation after fracture A	—	9	%
Vickers hardness HV	—	320 – 380	HV
Rockwell hardness HRC	—	32 – 39	HRC

Compared with property class 8.8, Grade 10.9 offers approximately 25–30 % higher tensile capacity and significantly higher clamp load capability. This makes it the preferred choice for critical joints in engines, chassis, structural steelwork, and heavy equipment where weight reduction and higher performance are required.

3. Hexa Bolts — Design & Standards

Hexagon head bolts (commonly called hex bolts) are the most widely used external-wrenching fasteners. The six-sided head provides excellent torque transmission with standard open-end or socket wrenches and allows access from multiple angles. Two principal international standards govern metric hex bolts:

ISO 4014 / DIN 931 — Partially threaded (shank under the head)
ISO 4017 / DIN 933 — Fully threaded

Partial-thread bolts (ISO 4014) are preferred when the shear plane should act on the unthreaded shank for higher shear capacity, or when precise clamping length is required. Full-thread bolts are chosen for versatility and when the full length may engage a nut or tapped hole.

Typical Dimensions (Selected Sizes, ISO 4014 / DIN 931)

Nominal Size	Pitch (mm)	Across Flats s (mm)	Head Height k (mm)	Thread Length b ≤125 mm	Wrench Size
M8	1.25	13	5.3	22	13
M10	1.5	16 / 17	6.4	26	16 / 17
M12	1.75	18 / 19	7.5	30	18 / 19
M16	2.0	24	10.0	38	24
M20	2.5	30	12.5	46	30
M24	3.0	36	15.0	54	36

Note: Across-flats dimensions may differ slightly between ISO and DIN series for certain sizes (e.g., M10 and M12). Always verify the applicable standard for the application. Product grades A and B define dimensional tolerances; Grade A is tighter and typically used for smaller diameters.

Advantages of Hexagon Head Design

High torque transmission capability with standard tools
Good accessibility in confined spaces from six possible angles
Cost-effective manufacturing and widespread availability
Compatible with a full range of nuts, washers, and locking devices

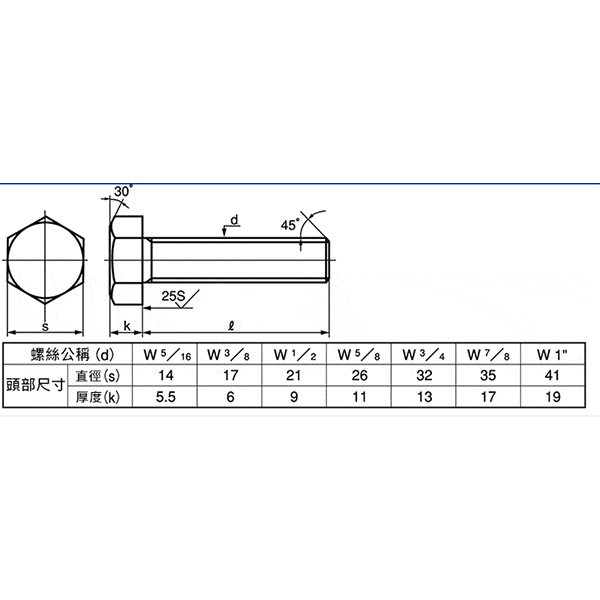

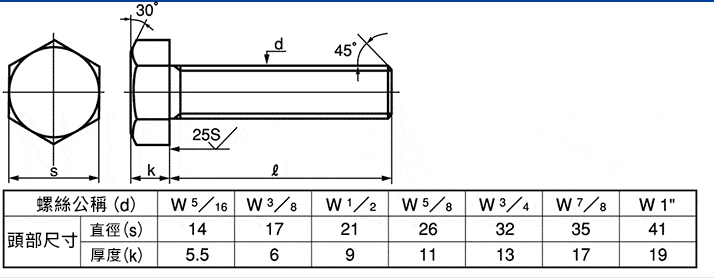

HEX HEAD BOLTS--A Comprehensive Technical

4. Dacromet Coating — Advanced Corrosion Protection

Dacromet is a proprietary zinc-flake coating technology (originally developed by Metal Coatings International). It consists of zinc and aluminium flakes suspended in an inorganic binder, applied by dip-spin or spray methods and cured at approximately 300–340 °C. The resulting thin, dense, silver-grey film provides multi-mechanism corrosion protection without the risk of hydrogen embrittlement — a critical advantage for high-strength fasteners such as Grade 10.9 and 12.9.

Key Performance Characteristics

Parameter	Typical Value / Performance
Coating thickness	5 – 15 μm (Grade A ≈ 5 μm; Grade B ≈ 8 μm)
Neutral salt spray (ASTM B117)	500 – 1000+ hours to red rust (depending on grade)
Heat resistance	Up to 300 °C continuous (coating remains protective)
Hydrogen embrittlement risk	None (non-electrolytic process, no acid pickling)
Coefficient of friction	0.12 – 0.18 (with lubricant variants such as Dacromet 500)
Appearance	Metallic silver-grey; uniform coverage even on threads

Comparison with Common Alternative Coatings

Feature	Electro Zinc	Hot-Dip Galvanizing	Dacromet
Thickness	5–15 μm	40–85 μm	5–15 μm
Salt spray (red rust)	72–240 h	400–800 h	500–1000+ h
H₂ embrittlement risk	High	Present	None
Thread fit impact	Low	High (often requires oversize)	Minimal
Suitability for 10.9+	Limited	Caution required	Excellent

Because the Dacromet process involves no electrochemical hydrogen generation and no aggressive acid pickling, it is the preferred (and often mandatory) coating for Grade 10.9 and higher fasteners in automotive and structural specifications.

5. Combined Advantages & Typical Applications

When Grade 10.9 strength, hexagonal head geometry, and Dacromet coating are combined, the resulting fastener offers an outstanding balance of mechanical performance, assembly convenience, and long-term durability in corrosive environments.

Primary Benefits

1.High clamp load capability — enables lighter joint designs and higher reliability under vibration and dynamic loads.

2.Superior corrosion resistance — salt-spray performance far exceeds conventional zinc plating while preserving thread accuracy.

3.Hydrogen-embrittlement free — essential safety feature for high-strength steel fasteners.

4.Controlled friction — lubricated Dacromet variants provide predictable torque-tension relationships, improving assembly consistency.

5.Thermal stability — remains protective at elevated temperatures encountered in engine compartments and industrial equipment.

Typical Application Fields

Automotive: chassis, suspension, engine mounts, powertrain components
Wind energy: tower flanges, nacelle structures, foundation anchors
Heavy construction & infrastructure: steel bridges, transmission towers, railway
Agricultural and construction machinery operating outdoors
Marine and offshore equipment (with appropriate grade selection)

6. Conclusion

Grade 10.9 Dacromet hexagon head bolts deliver a reliable combination of high tensile strength, practical installation geometry, and long-term corrosion protection. By meeting the rigorous mechanical requirements of ISO 898-1 Class 10.9, conforming to established dimensional standards such as ISO 4014, and utilizing a hydrogen-embrittlement-free zinc-flake coating, these fasteners provide engineers with a proven solution for critical joints exposed to both mechanical stress and aggressive environments.
