Ruspert Self-Tapping Screws

2026-08-04

1. Introduction

In modern industrial assembly, construction, and infrastructure, the reliability of fastened joints depends critically on two factors: the mechanical design of the fastener and the durability of its surface treatment. Among the many fastener-and-coating combinations available today, Ruspert-coated self-tapping screws stand out as a premium solution that delivers both superior corrosion protection and efficient thread-forming performance. This article provides a comprehensive overview of Ruspert surface coating technology and self-tapping screw design, explains how the two technologies complement each other, and outlines the key technical specifications and application scenarios for Ruspert self-tapping screws.

2. Understanding Ruspert Coating Technology

2.1 What Is Ruspert?

Ruspert is an advanced, multi-layer surface treatment system developed for steel fasteners. It combines zinc flake coating technology with a specialized organic topcoat to achieve an exceptionally high level of corrosion resistance. Unlike conventional electroplating, Ruspert is applied through a non-electrolytic dip-spin process, which means there is no risk of hydrogen embrittlement — a critical advantage for high-strength fasteners. The coating is fully compliant with international environmental regulations, containing no hexavalent chromium [Cr(VI)].

2.2 Multi-Layer Coating Structure

The Ruspert coating system consists of three primary layers, each engineered to provide a specific protective function: Base Layer (Zinc Flake): A sacrificial layer of zinc and aluminum flakes provides galvanic (cathodic) protection, preventing underlying steel from corroding even if the coating is scratched. Passivation Layer: A chromate-free chemical passivation film enhances adhesion between the base layer and the topcoat while adding a secondary barrier against moisture ingress. Organic Topcoat: A specially formulated organic resin topcoat seals the system, providing excellent weather resistance, UV stability, and the characteristic silver-blue finish.

Figure 1. Cross-section of the Ruspert three-layer coating system on a steel substrate.

Table 1. Key Advantages of Ruspert Coating

Property	Description
Corrosion Resistance	Exceeds 1,000 hours of neutral salt spray testing per ASTM B117, far surpassing conventional zinc plating.
Hydrogen Embrittlement Free	The coating process does not involve electrolytic reactions, eliminating the risk of hydrogen embrittlement.
Uniform Coating	Achieves consistent coverage on complex geometries, including threads and recessed areas.
Environmental Compliance	Free of Cr(VI) and compliant with RoHS, REACH, and ELV directives.
Aesthetic Finish	Distinctive silver-blue metallic appearance, ideal for visible fastener applications.
Electrical Conductivity	Maintains good electrical conductivity, making it suitable for grounding and electrical assemblies.

Table 2. Salt Spray Test Comparison of Common Fastener Coatings

Coating Type	Salt Spray Hours (ASTM B117)	Cr(VI) Content
Zinc Plating (Clear)	96 - 200 hrs	None
Zinc Plating (Yellow)	200 - 400 hrs	May contain
Dacromet	500 - 1,000 hrs	None
Ruspert	1,000+ hrs	None

3. Self-Tapping Screws: An Overview

3.1 Definition and Working Principle

Self-tapping screws are threaded fasteners designed to create their own internal threads as they are driven into an unthreaded pilot hole. Unlike machine screws, which require a pre-tapped hole, self-tapping screws eliminate the need for a separate tapping operation, significantly reducing assembly time and cost. The screw achieves this through a specially engineered thread geometry and a pointed or tapered lead that cuts or forms the thread as the screw is rotated and advanced.

3.2 Types of Self-Tapping Screws

Self-tapping screws are broadly categorized into two families: thread-forming (which displace material to create threads) and thread-cutting (which physically remove material via cutting flutes). Within these families, several standard types are widely used:

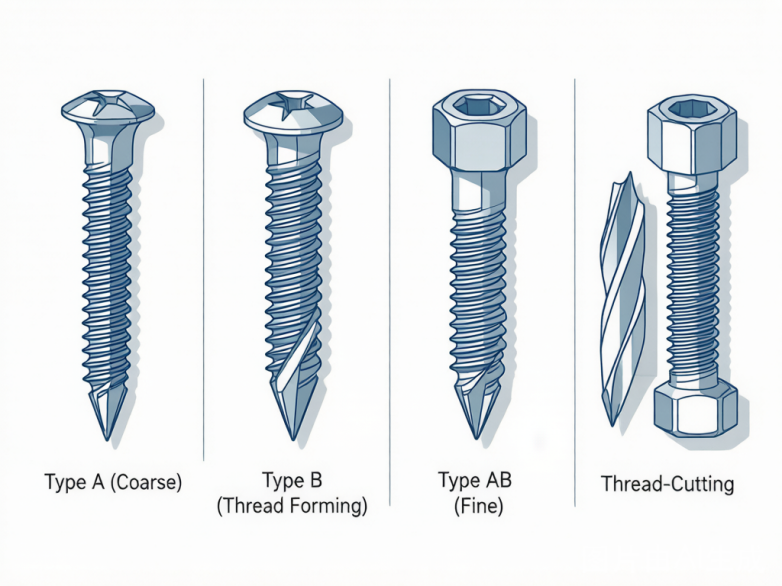

Figure 2. Common self-tapping screw thread profiles and cutting flute designs.

4. Ruspert Self-Tapping Screws: The Synergy

When Ruspert surface treatment is applied to self-tapping screws, the result is a fastener that combines the assembly efficiency of thread-forming technology with one of the highest levels of corrosion protection available in the industry. The non-electrolytic dip-spin coating process ensures uniform coverage even on the complex thread geometry, and the absence of hydrogen embrittlement risk makes Ruspert self-tapping screws safe for use in high-strength steel grades (up to Grade 10.9 and beyond).

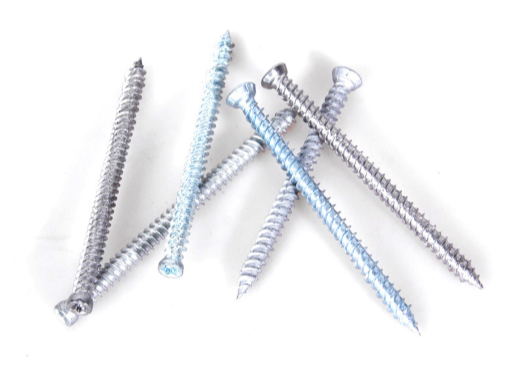

Figure 3. Ruspert-coated self-tapping screws in various head and drive configurations.

5. Conclusion

Ruspert self-tapping screws represent a convergence of two well-proven technologies: a multi-layer, environmentally compliant coating system that delivers over 1,000 hours of salt spray protection, and a self-tapping thread design that eliminates the need for pre-tapped holes. Together, they offer a fastening solution that reduces installation time, lowers total cost of ownership, and ensures structural integrity in the most demanding environments. For engineers and procurement professionals seeking a reliable, corrosion-resistant fastener that performs across decades of service life, Ruspert self-tapping screws remain an excellent and proven choice.
