Spring pad
Spring washers are predominantly crafted from high – quality materials to ensure reliable performance and durability. Carbon steel is a widely used material, often in grades like 65Mn or 70, which can be heat – treated to enhance its elasticity and fatigue resistance.
Description
marker
Product Material
Spring washers are predominantly crafted from high - quality materials to ensure reliable performance and durability. Carbon steel is a widely used material, often in grades like 65Mn or 70, which can be heat - treated to enhance its elasticity and fatigue resistance. Heat - treated carbon steel spring washers offer excellent resilience, allowing them to maintain continuous pressure on the fastened components and prevent loosening caused by vibrations or dynamic loads.
For applications requiring higher corrosion resistance, stainless steel is the material of choice. Stainless steel grades such as 304 and 316 are commonly used, providing superior protection against rust and chemical corrosion. This makes them suitable for use in harsh environments, including marine settings, chemical plants, and outdoor installations. Additionally, copper - alloy spring washers are employed in specific scenarios where electrical conductivity and anti - galling properties are required, such as in electrical connections. Some spring washers may also feature surface treatments like zinc plating, black oxide coating, or dacromet coating to further enhance corrosion resistance and improve appearance.
Product Models
The product line of spring washers encompasses various models categorized by their design and application:
Standard Helical Spring Washers: These are the most common type, featuring a simple helical - shaped structure. They are available in a wide range of sizes, corresponding to different bolt and screw diameters, typically from M2 to M36 or 1/8" to 1 - 1/2". Standard spring washers are suitable for general - purpose applications, providing basic anti - loosening functionality in mechanical assemblies, such as automotive parts, furniture fittings, and household appliances.
Wave Spring Washers: Characterized by their wave - like profile, these washers offer a more uniform distribution of spring force across the fastened surface. They are often used in applications where space is limited or a flatter profile is required. Wave spring washers are available in both single - wave and multi - wave designs, and they come in sizes similar to standard spring washers. They are ideal for precision machinery, electronic devices, and medical equipment, where consistent pressure and compact installation are crucial.
Belleville Spring Washers: Shaped like a conical disc, Belleville spring washers can generate high axial forces with a relatively small deflection. They are designed to withstand heavy loads and are commonly used in high - stress applications, such as in industrial machinery, oil and gas equipment, and aerospace components. Belleville spring washers are available in different thicknesses and diameters, and can be stacked in series or parallel to adjust the spring force according to specific requirements.
Lock Spring Washers: Specifically engineered for enhanced anti - loosening performance, lock spring washers may have additional features like serrated edges or a split design. Serrated lock washers bite into the mating surfaces, increasing friction and preventing rotation. Split lock washers, with their two - piece design, create a locking action when compressed, providing a more secure connection. These washers are often used in automotive engines, construction equipment, and other applications where vibration resistance is critical.
Manufacturing Process
The production of spring washers involves precise manufacturing techniques and strict quality - control measures:
Material Preparation: High - quality metal coils, whether carbon steel, stainless steel, or copper alloy, are selected and uncoiled. The material is then inspected for surface quality, thickness consistency, and mechanical properties to ensure compliance with production standards.
Forming: For helical spring washers, the metal strip is passed through a rolling or stamping machine, which shapes it into the characteristic helical form. Wave spring washers are formed using specialized dies that impart the wave - like profile, while Belleville spring washers are created by stamping or machining a conical shape from a flat metal disc. Lock spring washers may undergo additional forming steps to create serrations or split designs.
Heat Treatment (for carbon steel): Carbon steel spring washers are typically heat - treated to optimize their mechanical properties. The process usually includes annealing to relieve internal stresses, quenching to increase hardness, and tempering to restore some ductility and enhance elasticity. This heat - treatment cycle ensures that the washers can effectively absorb vibrations and maintain spring force over time.
Surface Treatment: To improve corrosion resistance and appearance, spring washers may undergo surface - treatment processes. Zinc plating involves immersing the washers in a zinc - rich bath, creating a protective layer. Black oxide coating forms a thin, black, corrosion - resistant layer on the surface. Dacromet coating, a more advanced treatment, provides superior corrosion protection and is often used for high - performance applications.
Quality Inspection: Each batch of spring washers is rigorously inspected. Dimensional checks verify that the outer diameter, inner diameter, and thickness meet the specified standards. Elasticity tests are conducted to ensure that the washers can generate and maintain the required spring force. Visual inspections are performed to check for surface defects, such as cracks, burrs, or uneven coatings. Only washers that pass all quality tests are approved for packaging and distribution.
Application Scope
Spring washers are widely used in various industries and mechanical applications:
Automotive Industry: In automotive manufacturing, spring washers are essential for securing engine components, suspension parts, and body assemblies. They prevent bolts and nuts from loosening due to engine vibrations and road shocks, ensuring the safety and reliability of vehicles.
Aerospace and Aviation: In aerospace applications, where precision and safety are paramount, spring washers are used in the assembly of aircraft engines, wings, and fuselages. High - performance materials like stainless steel and specialized surface treatments are employed to meet the stringent requirements of weight reduction, corrosion resistance, and fatigue strength.
Industrial Machinery: In industrial settings, spring washers are used to fasten heavy - duty machinery, such as conveyor systems, pumps, and generators. They help maintain the integrity of connections under continuous operation and heavy loads, reducing the risk of equipment failure due to loose components.
Electronics and Electrical Equipment: In the electronics industry, wave spring washers and small - sized standard spring washers are commonly used to secure circuit boards, connectors, and enclosures. Their ability to provide consistent pressure without damaging delicate components makes them ideal for precision electronic assemblies.
Construction and Infrastructure: In construction projects, spring washers are used for attaching structural elements, such as steel beams, railings, and scaffolding. They ensure that connections remain tight even under the dynamic loads and environmental stresses encountered in building and bridge construction.
Product Advantages
Effective Anti - Loosening: Spring washers provide a reliable anti - loosening solution by applying continuous elastic force between the nut or bolt head and the fastened surface. This force counteracts vibrations and rotational forces, preventing nuts and bolts from coming loose over time, thus enhancing the safety and stability of mechanical assemblies.
Versatility: Available in a wide range of materials, sizes, and designs, spring washers can be easily customized to suit different application requirements. Whether it's a small - scale electronic device or a large - scale industrial machine, there is a suitable spring washer model for the job.
Cost - Effective: Compared to more complex anti - loosening methods, such as thread - locking adhesives or specialty fasteners, spring washers offer a cost - effective solution. They are relatively inexpensive to manufacture and install, making them a popular choice for both high - volume production and maintenance applications.
Easy Installation and Removal: Spring washers are simple to install and remove, requiring only basic hand tools. Their straightforward design allows for quick assembly and disassembly, reducing maintenance time and labor costs in various industries.
Durable and Long - Lasting: Constructed from high - quality materials and often treated for enhanced performance, spring washers have a long service life. They can withstand repeated loading and unloading cycles, as well as exposure to different environmental conditions, ensuring consistent performance throughout their lifespan.
contact us
Related popular products
Thin nut
Thin nuts are typically manufactured from a diverse range of materials, each selected based on specific application requirements and performance needs.
High strength flange external hexagon
Black carbon steel hexagonal flange DIN6921 Class 10.9 hex flange bolts are primarily fabricated from high – quality carbon steel with specific alloying elements added to achieve the 10.9 – class strength requirements.
Hexagonal flange double tooth vertical tooth drill thread
Decking screws are crafted from a diverse range of materials, each selected to meet the specific requirements of outdoor decking applications.
8.8 level
These structural bolts primarily utilize stainless steel as the base material, which endows them with excellent corrosion resistance and durability.
Flat head hexagon socket machine screw
CSK flat socket head screws are typically manufactured from a diverse range of materials, each selected to meet specific performance requirements. Carbon steel is a commonly used material for general – purpose applications. Grades such as 4.8, 8.8, and 10.9 are frequently employed.
Locking nut
Nylon insert hex lock nuts are primarily composed of two main materials: the nut body and the nylon insert. The nut body is commonly made from high – quality carbon steel, alloy steel, or stainless steel, each chosen based on specific application needs.

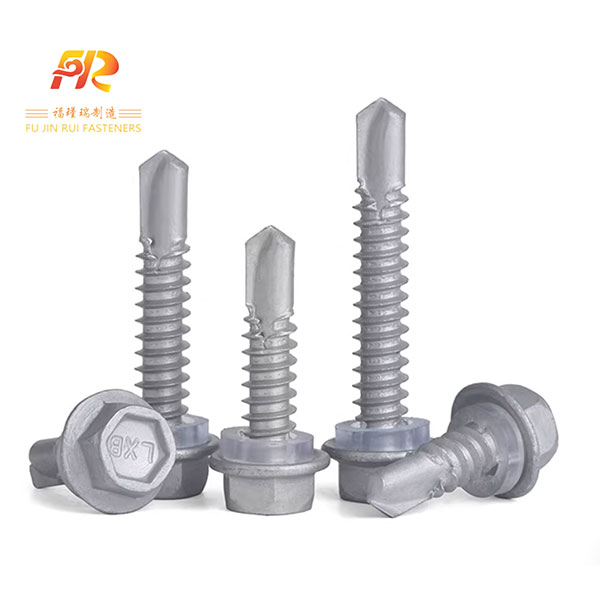

Hexagon flange self-tapping screw
